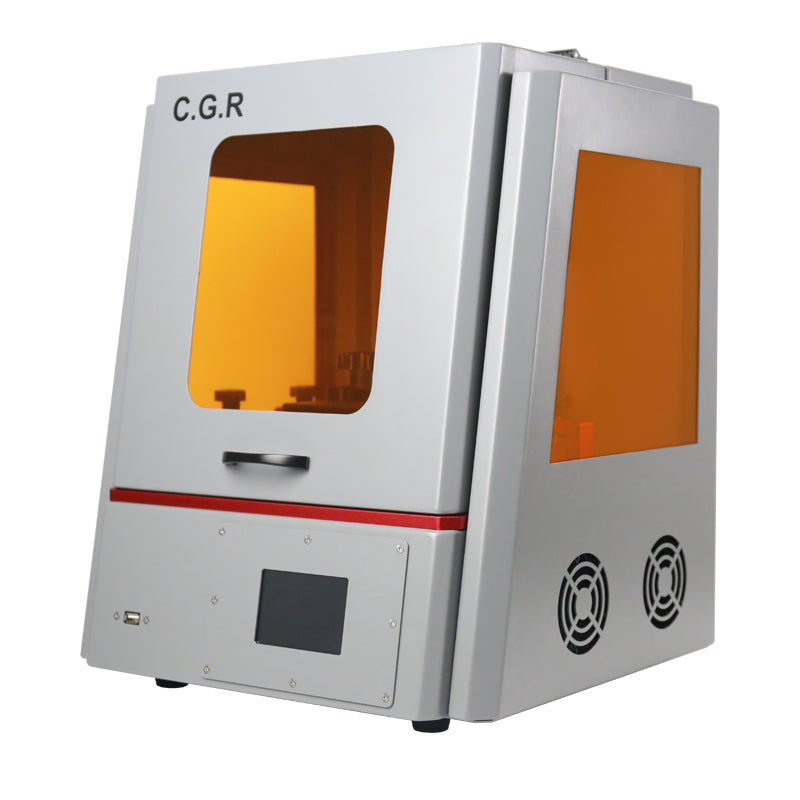

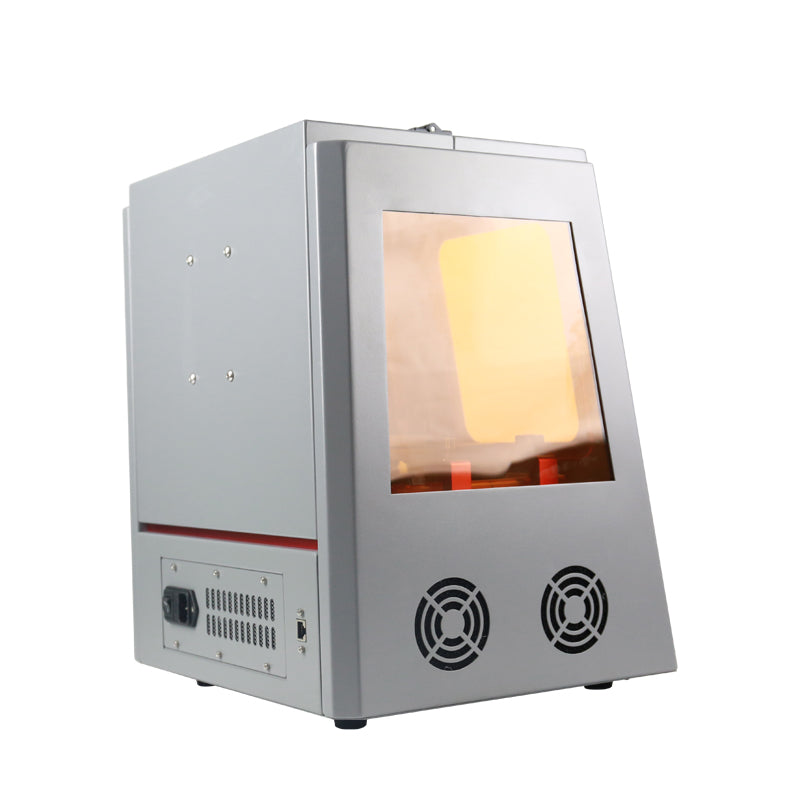

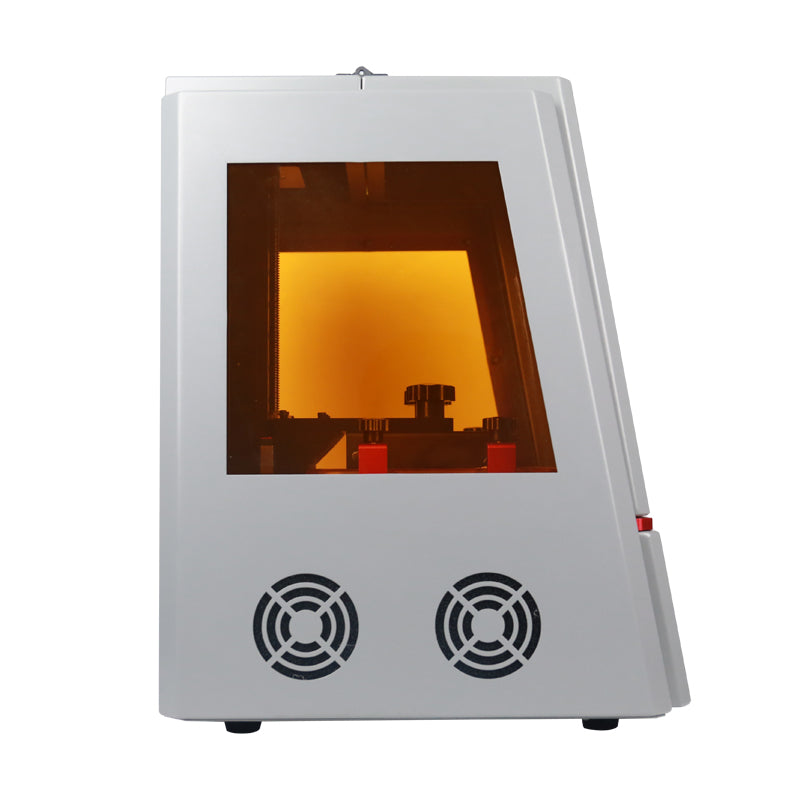

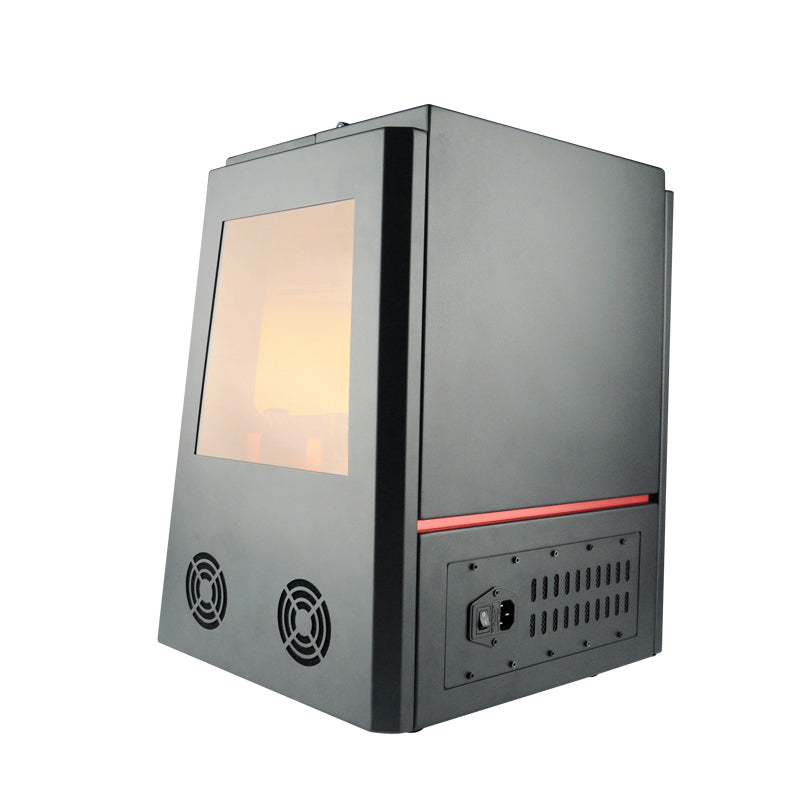

Wanahao Resin 3D Printer CGR, Use 4K 8.9inch LCD, With high resolution

Name: Wanahao Resin 3D Printer CGR, Use 4K 8.9inch LCD, With high resolution
Brand: WANHAO
SKU: 0327041
Price: 551.0 USD
Availability: InStock

$551.00 USD

Sale Sold out

D8 with 500ml resin CGR Printer and 500ml resin CGR Printer

Product variants

Quantity

Wanahao Resin 3D Printer CGR, Use 4K 8.9inch LCD, With high resolution

Technical Specifications
Machine Type	DLP (Digital Light Processing) LCD 3D Printer
Hardware
Max printable area	192120180mm(7.5
Accuracy	X 0.075mm(75um) Y 0.075mm(75um) Z 0.010mm(10um)

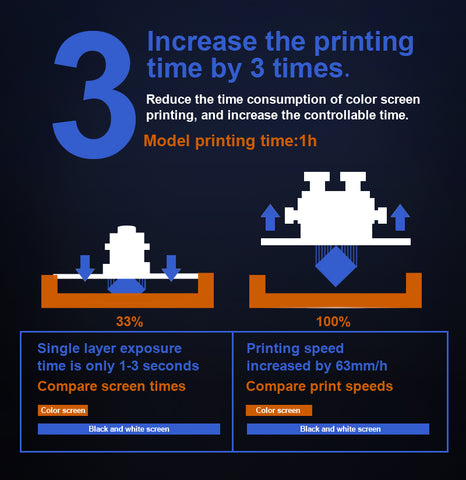

Printing speed	10-40mm/hr
Optical Uniformity	UV LED array( Maxim) Design with 90% Optical Uniformity
UV Type	405 nm UV lamp,
Packing size(cm)	470460575mm

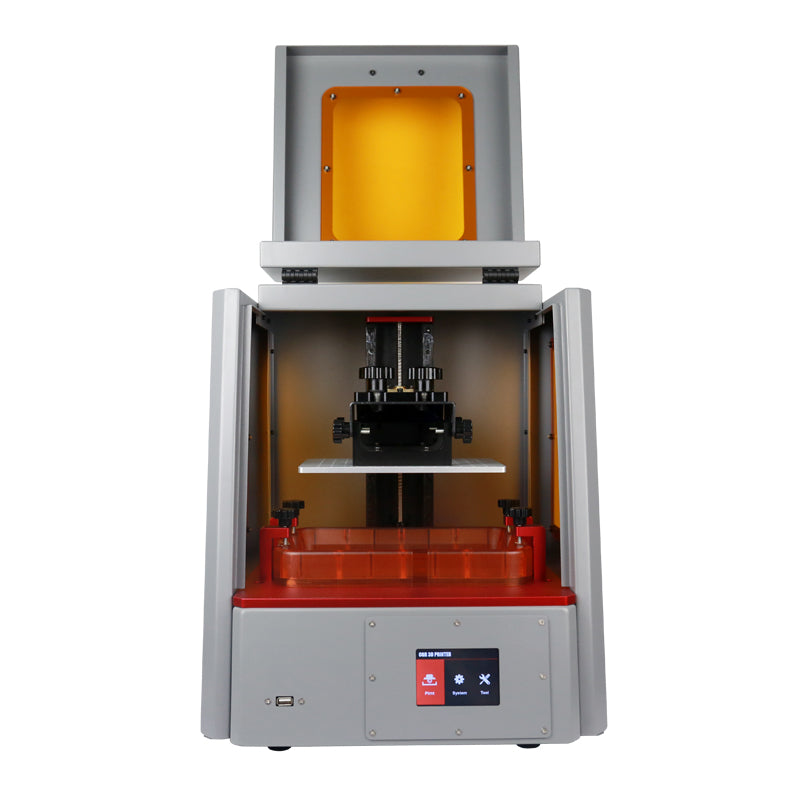

Enclosure Type	Tilt Hood with UV safe glass
Net Weight(kg)	22kg
Gross Weight(kg)	28kg

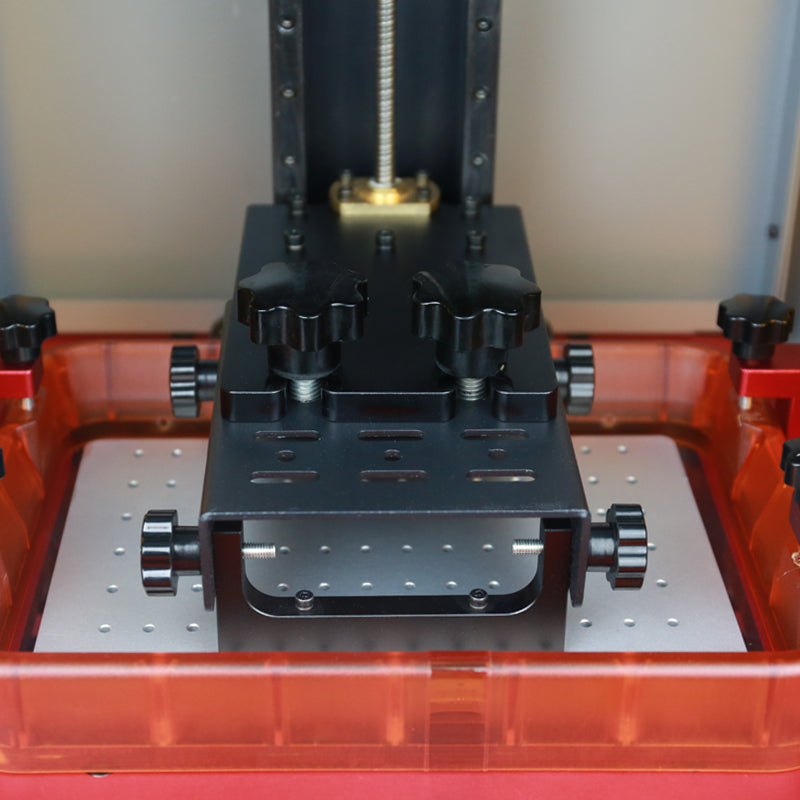

Z axis movement	Reinforced double linear guide with Gap eliminated ball screw
Screen	Customize 4K LCD
Light	UV LED Array design(150W, 405nm)
End stop sensor	Optical Endstop(sensitive to 2um)

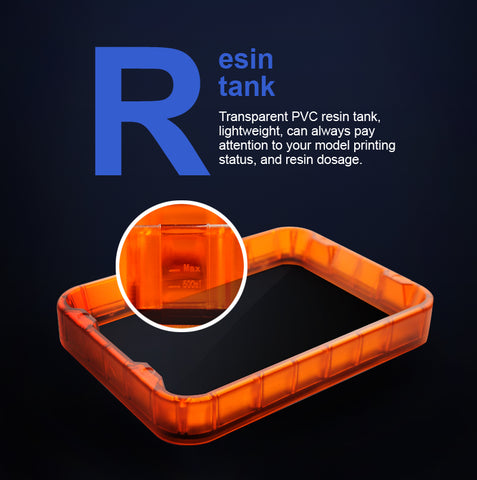

Vat	Teflon vat( 10 times life span than traditional PDMS)
Software	Chitubox
Workmanship	Build with CNC machining parts and Aviation Grade aluminum alloy.

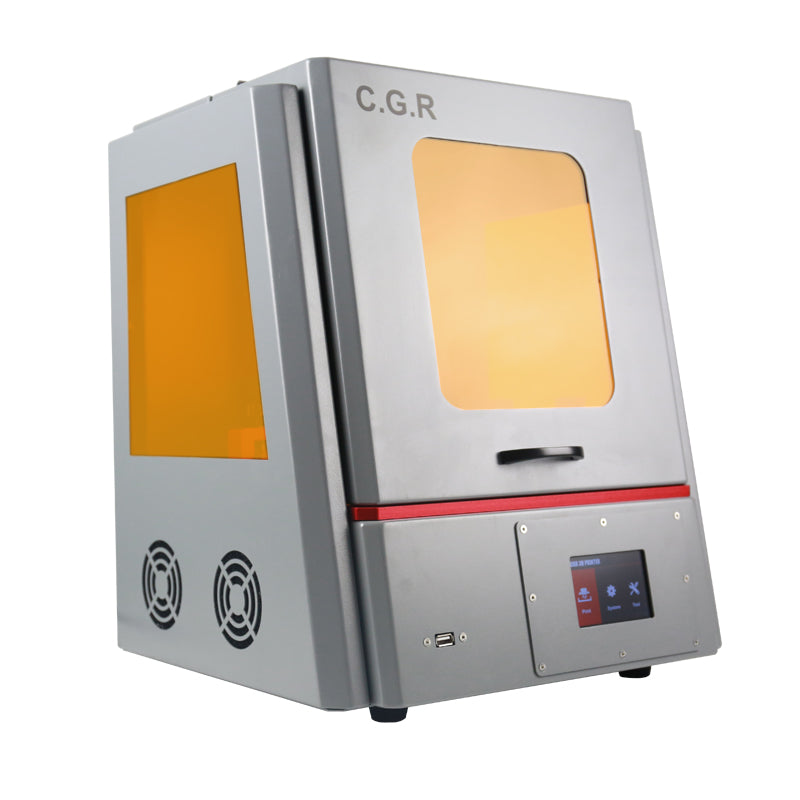

Cooling system	Build in 6 silent super cooling fan
Temperature monitor	Build in temperature monitor system provide on time monitoring and warning notice.
Leveling monitor system	Build in leveling monitor, leveling before you print
Material supported	405nm Resin
Max printing speed	Up to 60mm/hour
