Wanhao

D7/D7 Plus FEP Film Replacement Sheets Size 0.2*130*185mm

D7/D7 Plus FEP Film Replacement Sheets Size 0.2*130*185mm

$6.00 USD
$6.00 USD
销售额 售罄
Package Quantity

Duplicator D7/D7 Plus FEP Film

 Notice           : Please leave your phone number when you make order for package delivery (in comment or in shipping address )

Application : Wanhao D7/D7 Plus 3D Printer

Size : 0.2mm*130mm*180mm

Specification Sheet :

Items Unit WH-150 Test Method
Average Thickness μm 150 -
Specific Gravity g/cm³ 2.12~2.17 ASTM D792
Melting Point ℃ 260 DSC
Max Temperature for Continuous Use ℃ >200 ASTM D638
Coefficient of Thermal Conductivity J/s·cm·℃ 2.5ｘ10-3 ASTM C177
Tensile Strength Mpa >20 ASTM D638
Elongation % >200 ASTM D638
Heat Shrinkage % ≤5 50mm , 120℃，10min
Critical Oxygen Index Vol% >95 ASTM D2863



How to assemble the the FEP Film :

1.Remove 10 screws to detach the steel rings from the resin vat.

2.Remove the 12 screws to separate the steel rings and change the FEP film.

3.Put the new FEP film close between the steel ring and the resin groove.

4.Install the steel rings back to the resin vat and ensure the FEP film is clean and tesioned properly.





Precut exact fit D7/D7 Plus top quality FEP VAT film in 0.2mm thickness, excellent to have a few backups when you accidentally puncture your vat removing a print.

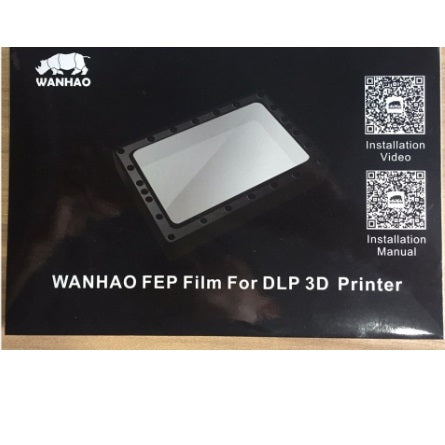

PACK PIC

Resin Vat with FEP film :

VIDEO

How to replace the FEP film ?
