WANHAO

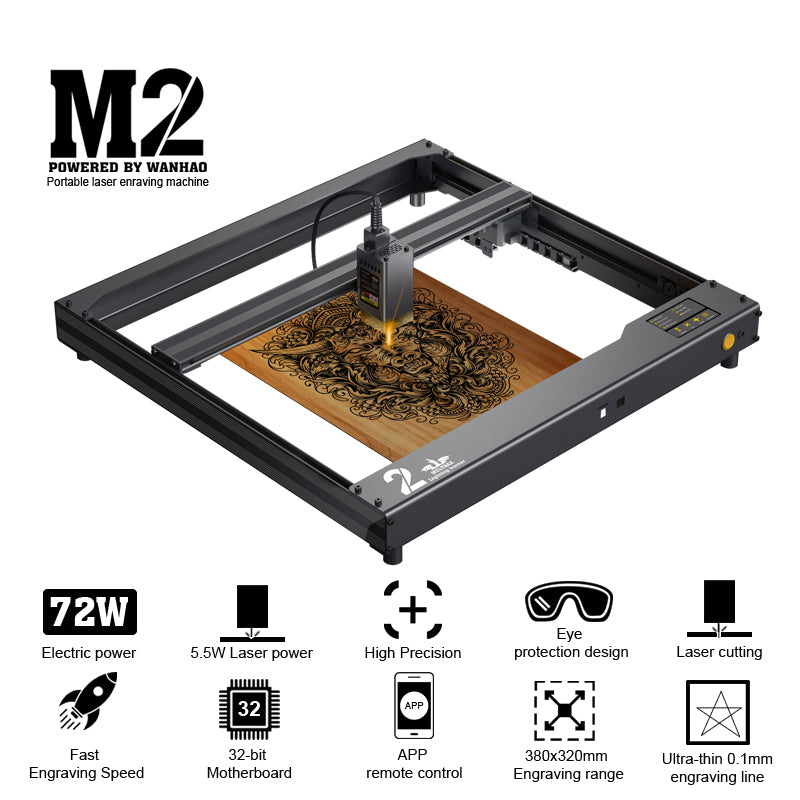

Laser Machine Laser Printer M2 Lighting burner

Name: Laser Machine Laser Printer M2 Lighting burner
Brand: WANHAO
Price: 345.0 USD
Availability: InStock

$345.00 USD

销售额售罄

Size 5.5W 10W

产品多属性

数量

NEW COMING

Description

Mechanics

Working Area: 380x320 mm

Min Engraving Speed: 40 mm/min

Max Engraving Speed: 10000 mm/min

Frame materials: Independent research and development of special new profiles

End-Stops - Limit Switches: Mechanical X and Y Limit switches

Drag Chain - Cable Management: Y Axis Drag Chain - Zip Ties

Timing Belt: GT2 6mm, 2mm Pitch (60cm)

Stepper Motors: Nema 17HS Series

X-axis: 42mmx38mm - 30mm D Shaft

Y-axis: 42mmx29mm - 24mm D Shaft

Sprocket: 16mm - 20 Tooth

Y Axis Synchronization Shaft: 5mm Stainless Steel

Maximum thickness that can be cut at a time:
Laser Module	5.5W	10W
Basswood Plywood	4mm	10mm
Cherry Wood	3mm	10mm
Walnut Wood	3mm	8mm
Fraxinus Mandshurica Wood	3mm	8mm
Black Acrylic	2mm	8mm

Technical Parameters：
Luminous Color	Blue	Blue
Laser Electric Power	10W	20W
Laser Module Output Power	5.5W	10W
Laser Spot	0.069 mm	0.069 mm
Wavelength	450±5nm	450±5nm
Routing Speed	160 mm/s	160 mm/s
Working Voltage	12V	12V
Safe temperature range	<55 ℃	<55 ℃
TTL&PWM Modulation	YES, Compatible with Both TTL & PWM Modulation	YES, Compatible with Both TTL & PWM Modulation
